Switch between Top and side views

Choose Top, Front, Back, Left or Right in 2D to inspect a Dravit project from different directions.

Above the viewport, select 2D. Choose Top for the plan or Front, Back, Left or Right for a side projection. Use Fit viewport to content if the model lies outside the visible area.

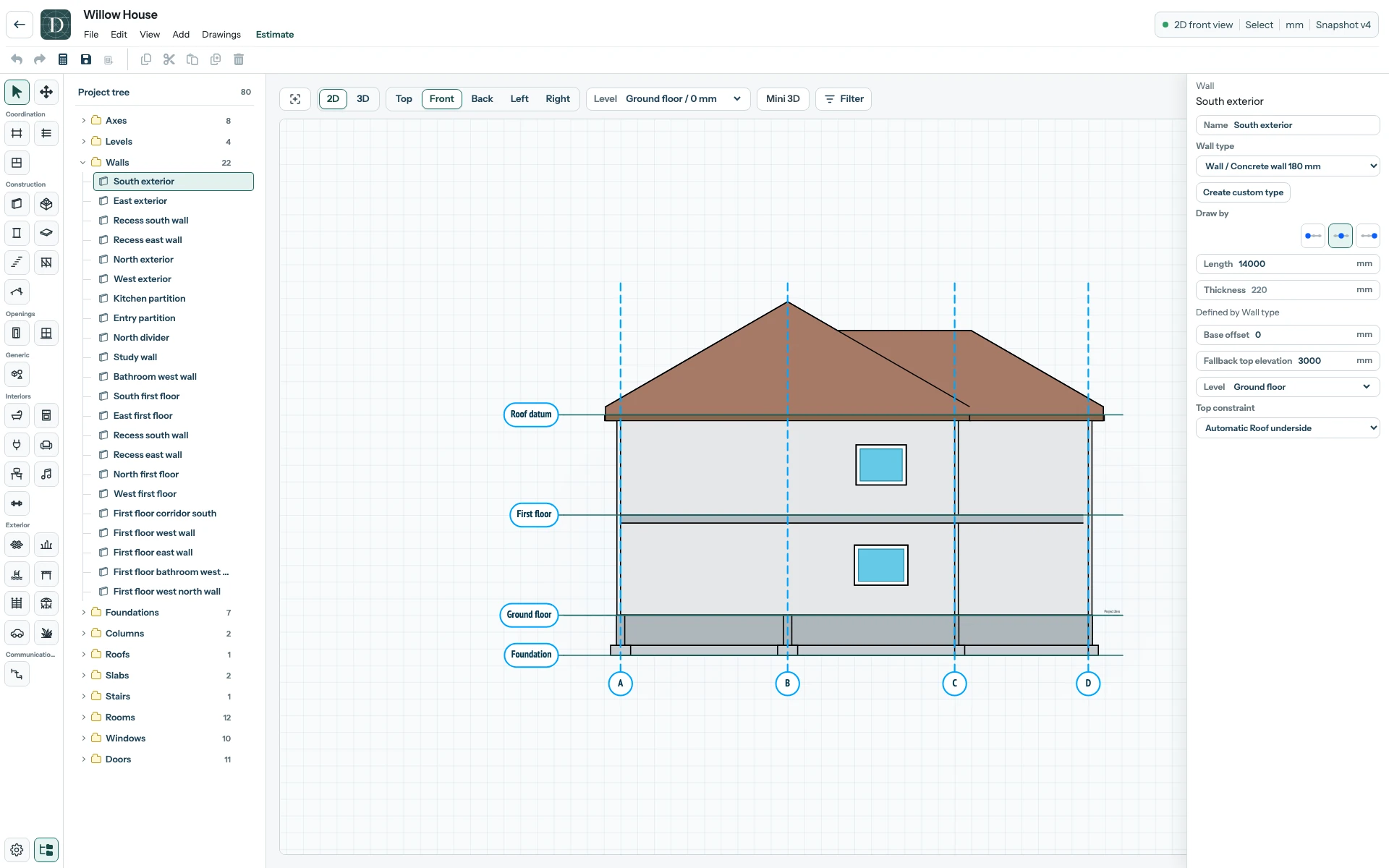

The complete Willow House editor in Front 2D with building elevation and Level references.
Front shows an elevation of the same model seen in Top.

View the full-size Front screenshot.

In Top, choose the working Level to inspect its plan. Upper Levels are hidden. Only the nearest lower Level can supply a faint underlay: Walls and Windows for alignment and Stairs for the route from below. Other lower-Level objects are not a complete background plan. In a side view, compare element heights with the Level lines and fixed Project Zero reference. Switching projection changes your viewpoint, not the saved geometry. A logical Room polygon is a Top 2D annotation, so it does not become a solid in a side view.

To make a sheet from a supported Top view, use Make a drawing. For height meaning, see Project Zero and elevation.
